Armytek Parma C1IR PCB
Flashlight with white and IR light for mounting on a weapon or a specialized helmet

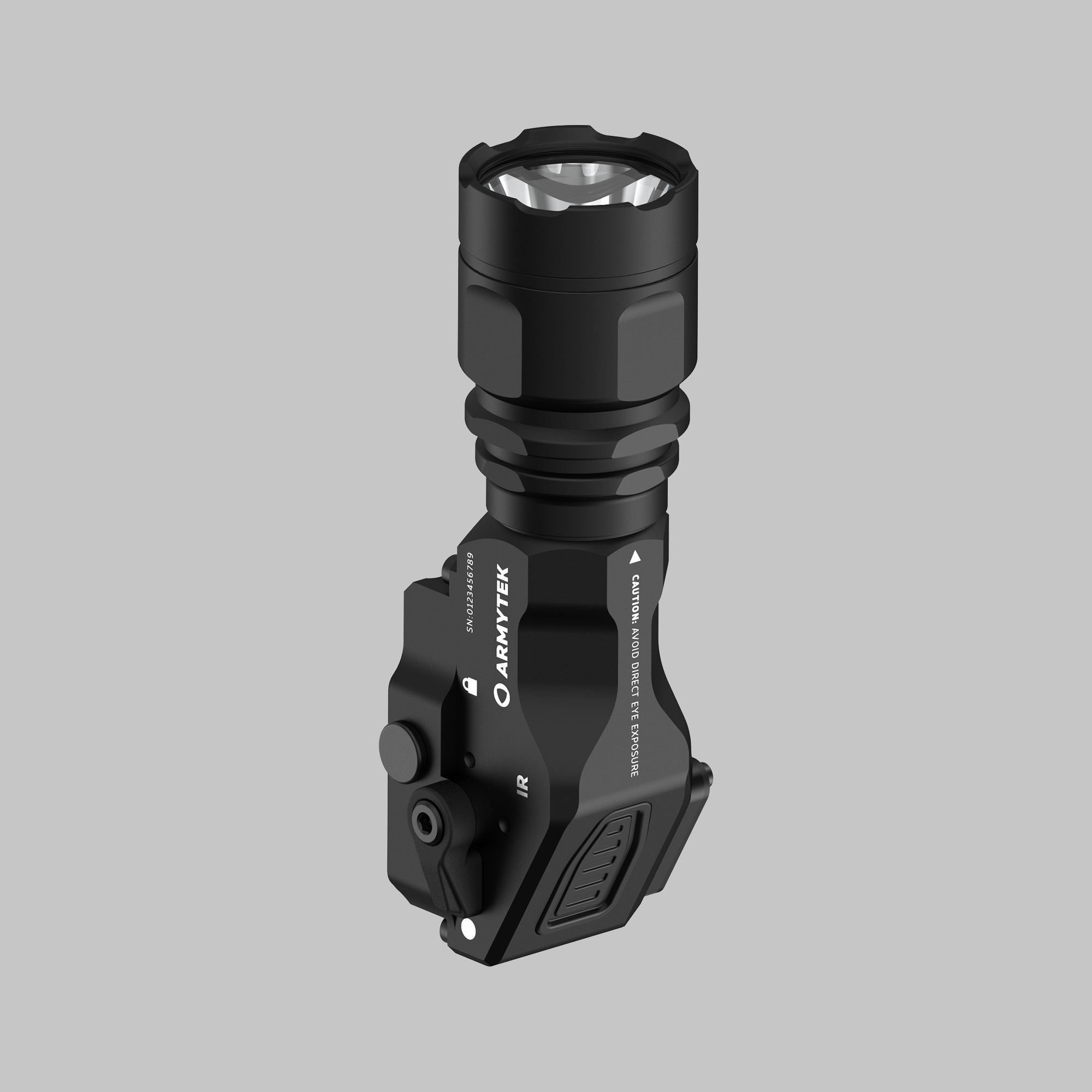

Parma C1IR is a 2-in-1 tactical flashlight with white and infrared light for mounting on a rifle, carbine or a helmet with a pre-installed ARC rails system. The model is suitable both for use by special forces and for hunting.
White light with a brightness of up to 520 lumens is for performing standard tasks in low visibility conditions. IR light is for solving special tasks with the help of additional equipment.
Parma C1IR works on one 18350 Li-Ion battery or CR123A lithium battery. Replaceable batteries allow to significantly increase the operating time of the flashlight in conditions of prolonged stay away from the permanent location. The integrated mount is compatible with Picatinny/Weaver rails, the flashlight can be installed on the weapon and removed without additional tools. The form factor of the model and the included remote switch provide convenient use of the flashlight on various carbine handguard locations. The small size and low profile of the flashlight further contribute to ergonomic use: the installed flashlight protrudes minimally beyond the external dimensions of the weapon.
Parma C1IR — 2 in 1 flashlight
Flashlight
- White light for illumination and preliminary aiming at the target using the spot of light, Strobe mode for disorienting the adversary
- Quick access to Strobe mode without additional switches
Infrared illuminator
- Infrared light for concealed use together with night vision devices or digital night vision scopes
Advantages of Parma C1IR

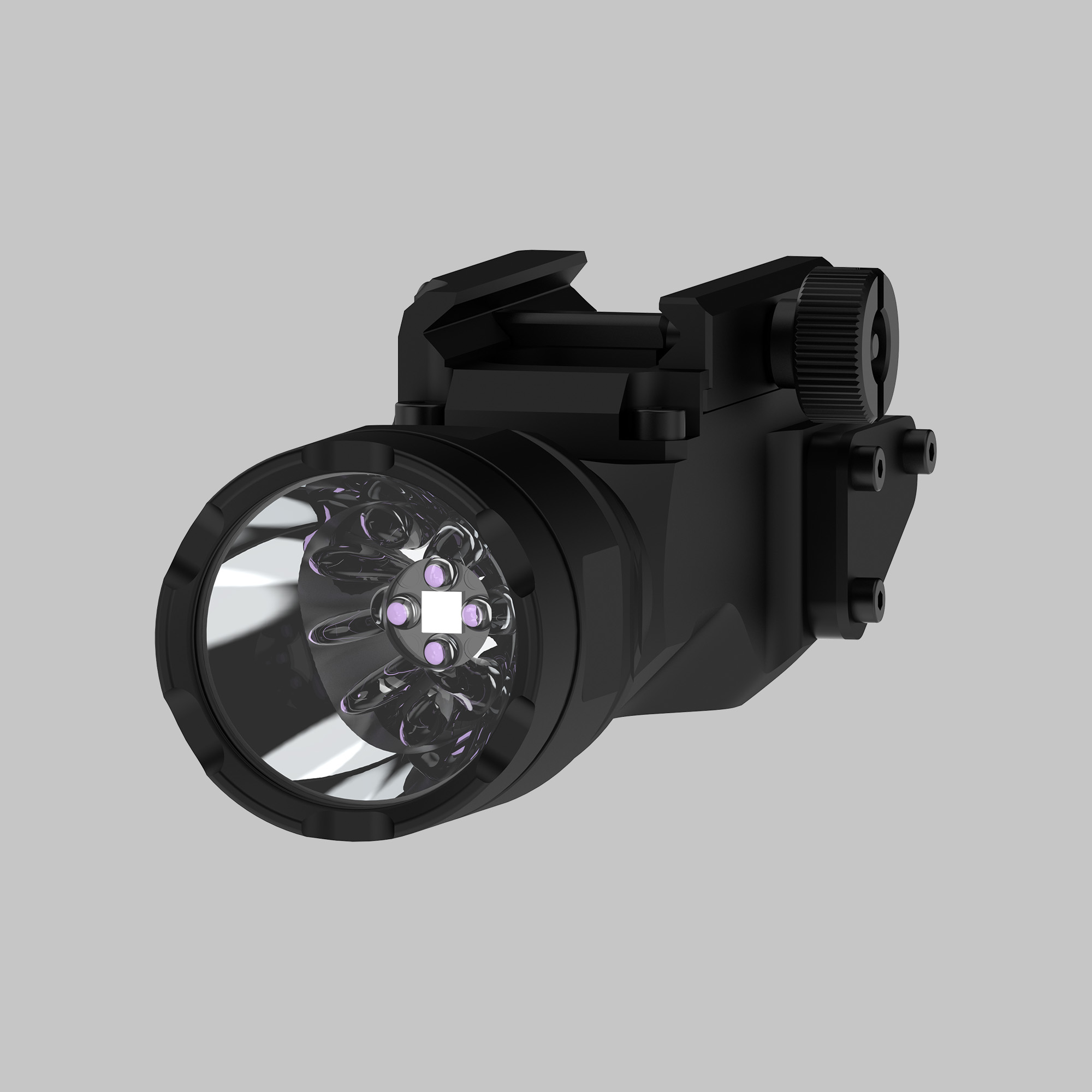

Special precisely calculated reflector for High Intensity LED modification. Tempered glass with anti-reflective coating, O-rings and bezel for additional protection of the optical system.
Additional reflectors on IR LEDs create the correct geometry of the spot of light.

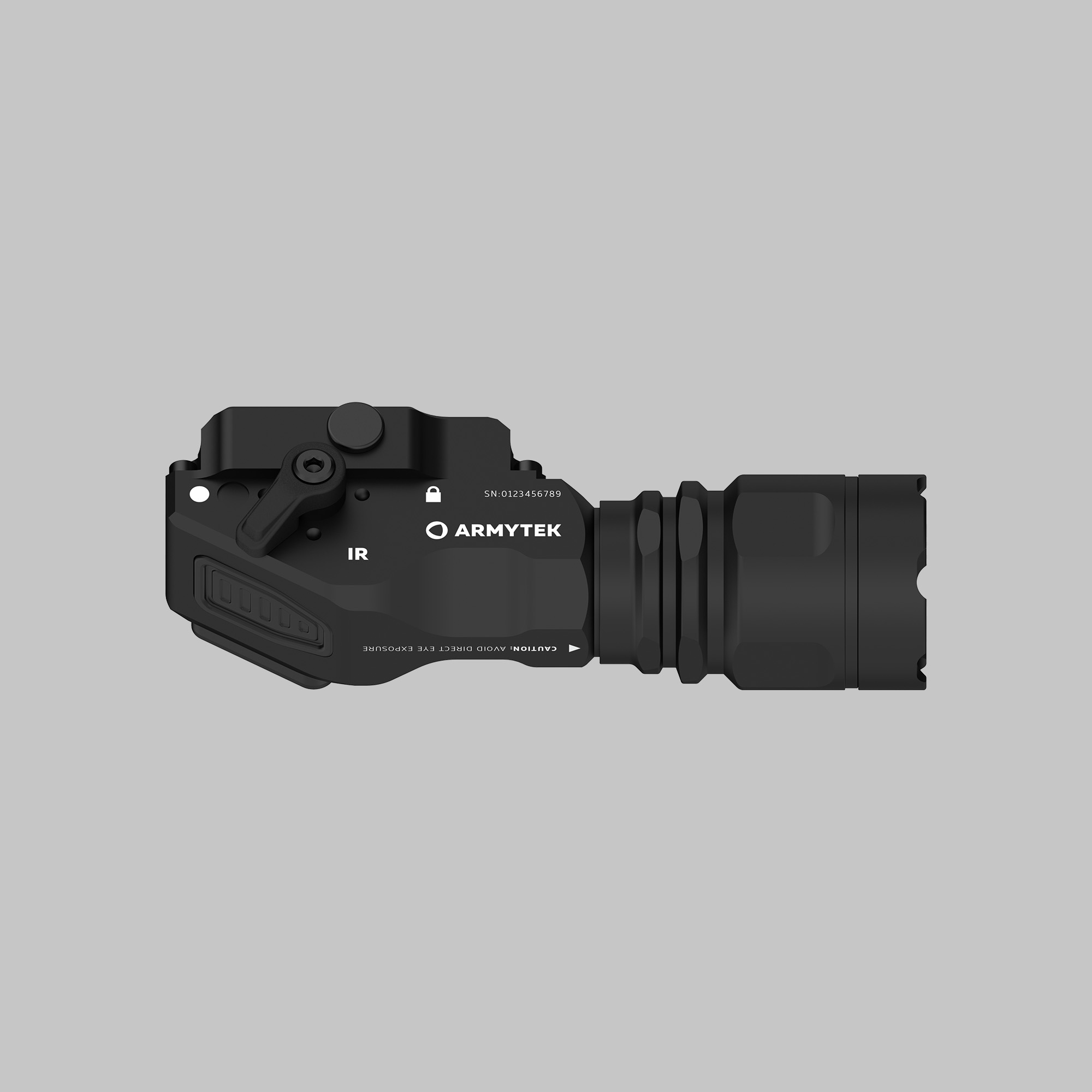

Convenient operation with one finger — large button for easy pressing even with tactical gloves, switching lever for selecting the type of light.
Fast switching between white light, infrared light and lock-out against accidental switching on.
Easy pressing of the buttons without additional effort doesn't hinder aiming.
Tactical mode: noiseless light switching while the button is pressed.
Quick installation on rails of various types and removal without the use of additional tools.
Rotatable adapter for mounting on a helmet with preinstalled ARC rails system is in the set.

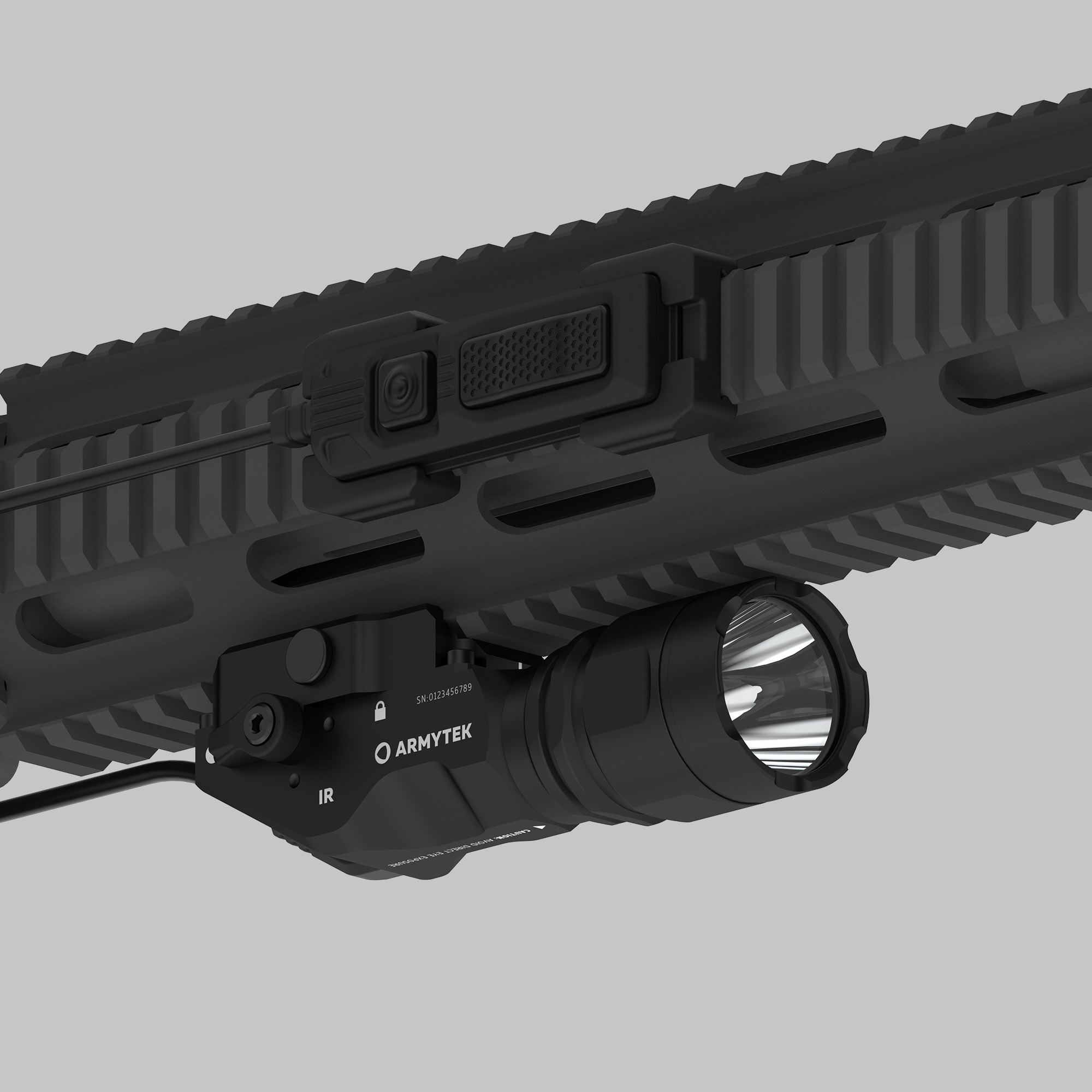

Multifunctional remote switch with the possibility of constant or tactical (while holding the button pressed) light switching is in the set.
Lightweight and robust body from aircraft-grade aluminium with matt non-reflective black anti-abrasive finish.
The use of two reinforced springs in the design of the flashlight for better protection of the battery and the driver. The flashlight withstands the recoil of any firearm.
The flashlight utilizes one standard 18350 Li-Ion battery (in the set) or one lithium battery CR123A (not included).
Quick battery replacement without removing the flashlight from the rail.
Active real-time temperature control to prevent overheating above +58 °C.
Innovative technology provides full protection against short circuit.

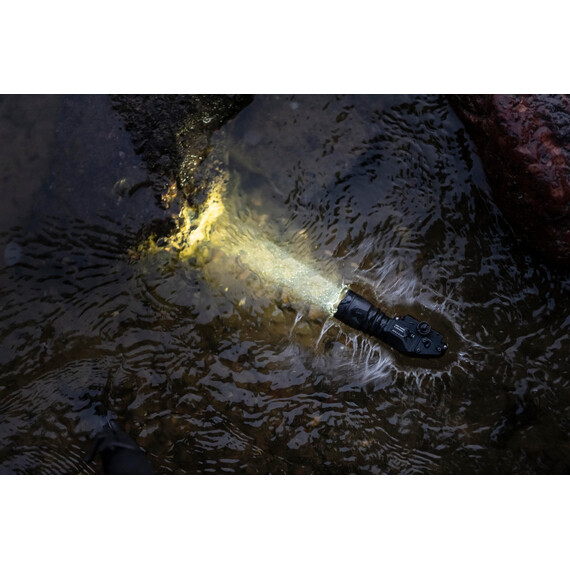

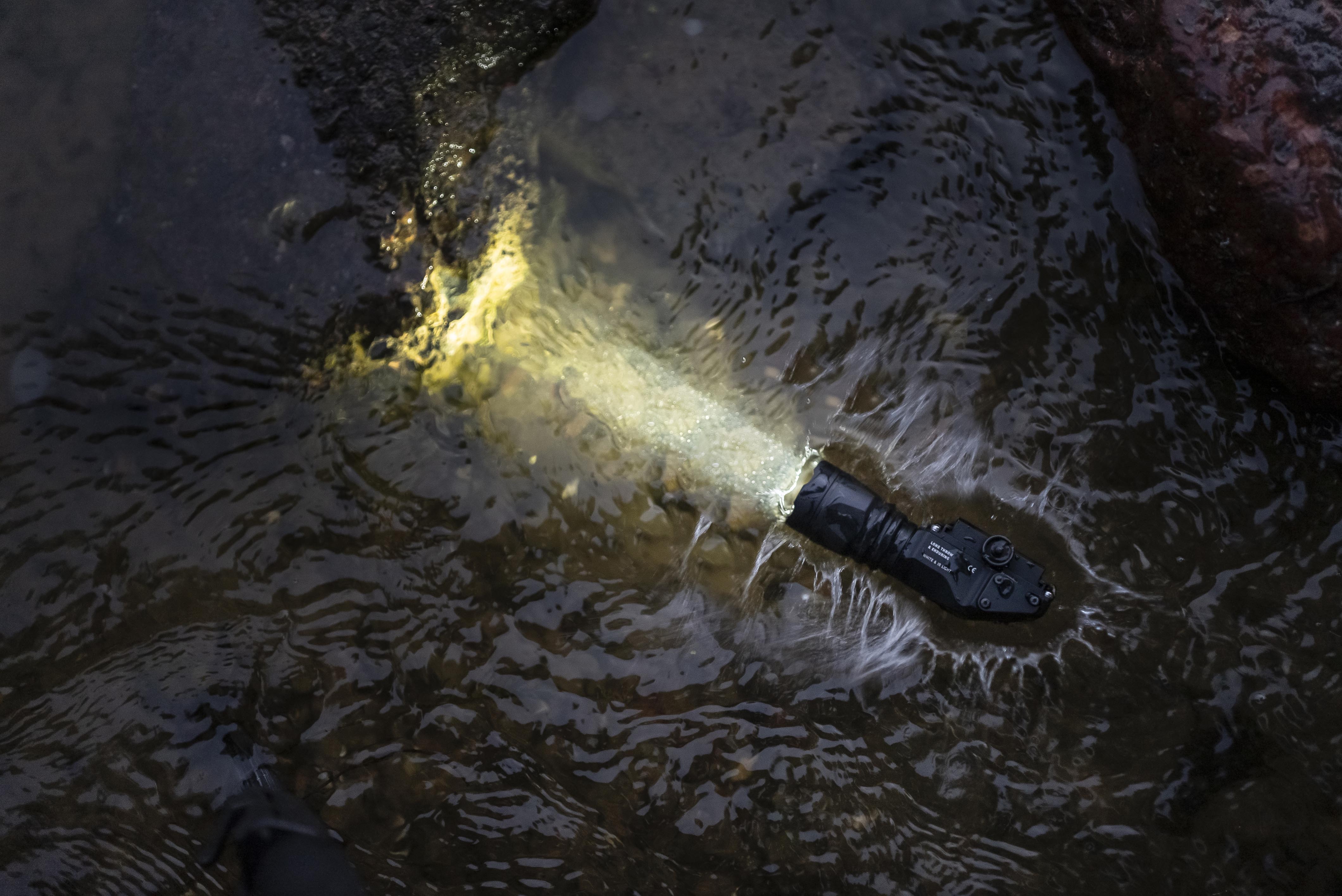

Total protection from water, dirt and dust in accordance with IP68 standard. When remote switch is attached, ingress protection corresponds to IP67 standard. Withstands fallings from 10 meters.
No hassle warranty 10 years.
Well-thought-out set of accessories

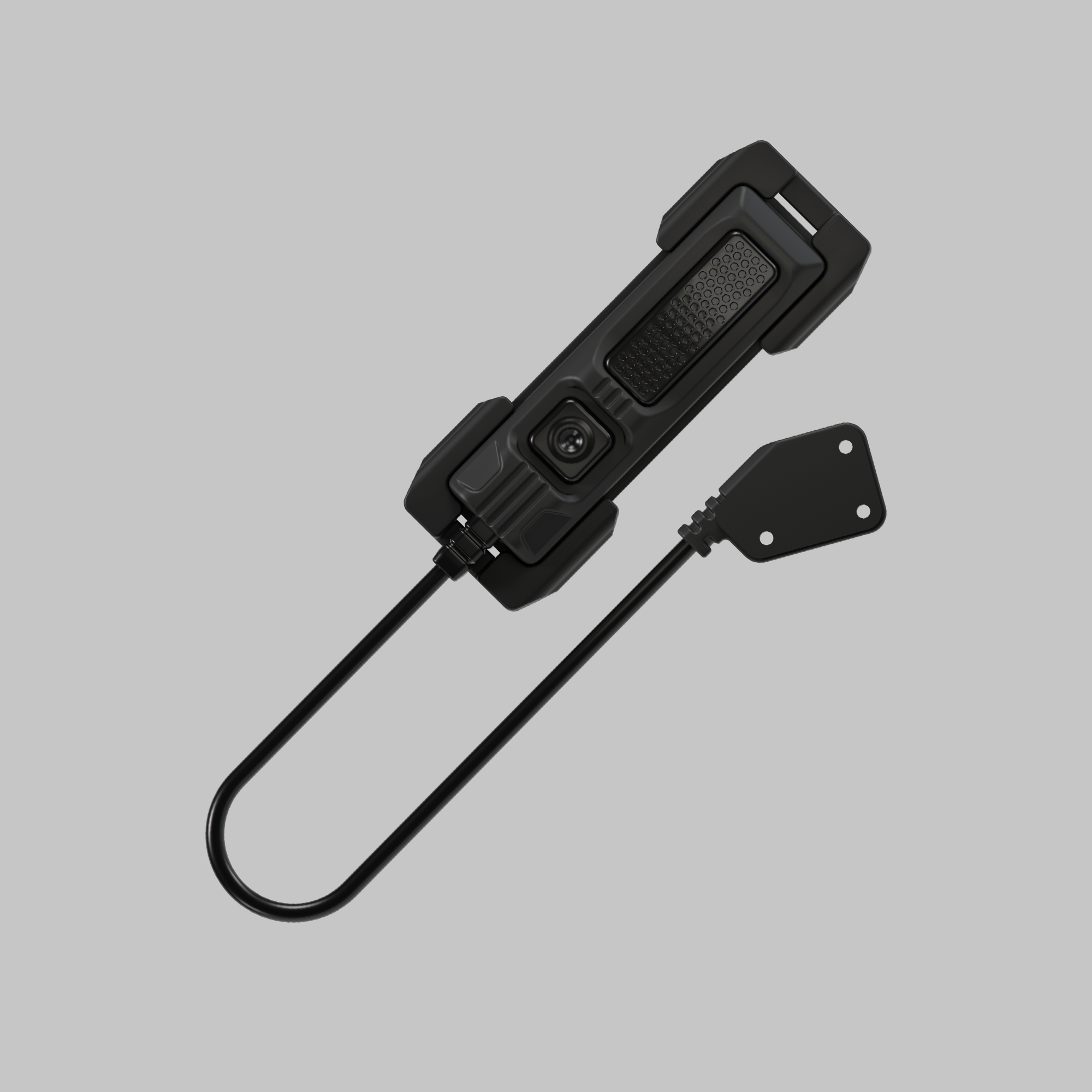

Multifunctional remote switch with set of mounting holders for Picatinny/Weaver rail.
Velcro mounting tape and nylon zip ties for fixing the remote switch on any part of the weapon.
Spare parts for installation of the remote switch on the flashlight.
Adapter for mounting the flashlight on a helmet with preinstalled ARC rails system.
18350 Li-Ion 900 mAh battery (protected).
Parma C1IR
| White | |
|---|---|
| Optics | Reflector |
| Light output | 520 lm |
| Beam distance | 200 m |
| Hotspot : Spill | 5.5°:62° |
| IR light power | 1.3 W |
| IR light wavelength | 940 nm |
| Brightness stabilization | Full |
| Modes / Runtimes |
520 lm / 1 h 40 min (300 lm after 40 sec) 100 lm / 3 h 5 min 520 lm / 15 Hz / 1 h 55 min (300 lm after 3 min) 1.3 W / 1 h 32 min (0.65 W after 30 min) |
| Power source | 1x18350 Li-Ion, 1хCR123A |
| Length / width / height | 118 mm / 43.4 mm / 41 mm |
| Weight without / with battery | 127 g / 154 g |
| Ingress protection, Submersion and Impact resistance | IP68. Depth up to 2 m for 5 h. IP67 when remote switch is installed. Height up to 10 m |
Armytek Parma C1IR — flashlight with white and IR light for mounting on a weapon or a helmet
Parma C1IR is a 2-in-1 tactical flashlight with white and infrared light in a compact body. The model is designed for mounting on a rifle, carbine or a helmet with a pre-installed ARC rails system. White light with a brightness of up to 520 lumens is for performing standard tasks in low visibility conditions. IR light is for solving special tasks with the help of additional equipment. The flashlight is suitable both for use by special forces and for hunting: the integrated mount is compatible with Picatinny/Weaver rails. Parma C1IR works on one 18350 Li-Ion battery or CR123A lithium battery.
Review & Manual: Armytek Parma C1IR
Video navigation:
0:09 Features of the model
00:59 Installation on a Picatinny/Weaver rail
1:37 Operation with the button
2:39 Operation with the switching lever
3:07 Connection of the remote switch
3:36 Installation of the remote switch
4:22 Remote switch operation
