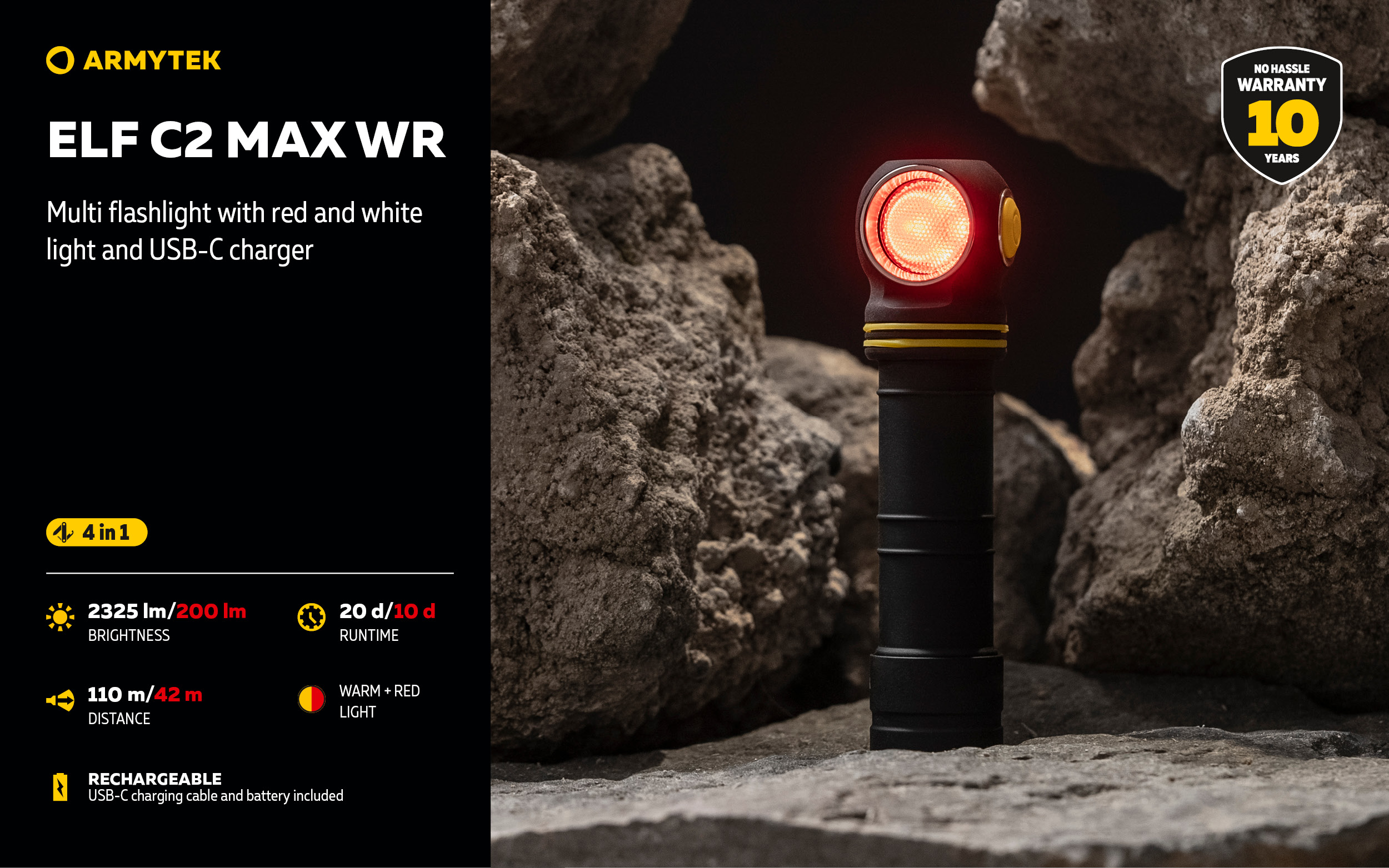

Armytek Elf C2 Max WR USB-C PCB Warm
Multi flashlight with red and white light and USB-C charger
A versatile model in the Elf series with powerful red and white outputs. Elf C2 Max WR is the perfect primary or additional light source in any situation.
A wide beam of white light with a brightness of up to 2500 lumens not only allows working at close range, but also effectively illuminates large spaces. Red light with a brightness of up to 200 lumens is optimal for maintaining night vision, especially when interchanging between turning the light on and off: in a camping tent, when reading maps or observing the stars, for fishing, hunting or professional application.
Red light is more effective during fog or other conditions of limited visibility. It can be used for giving signals or as a warning beacon. Fishers and hunters will surely appreciate the model: red light won't scare off animals or fish, and it will also not attract annoying insects.

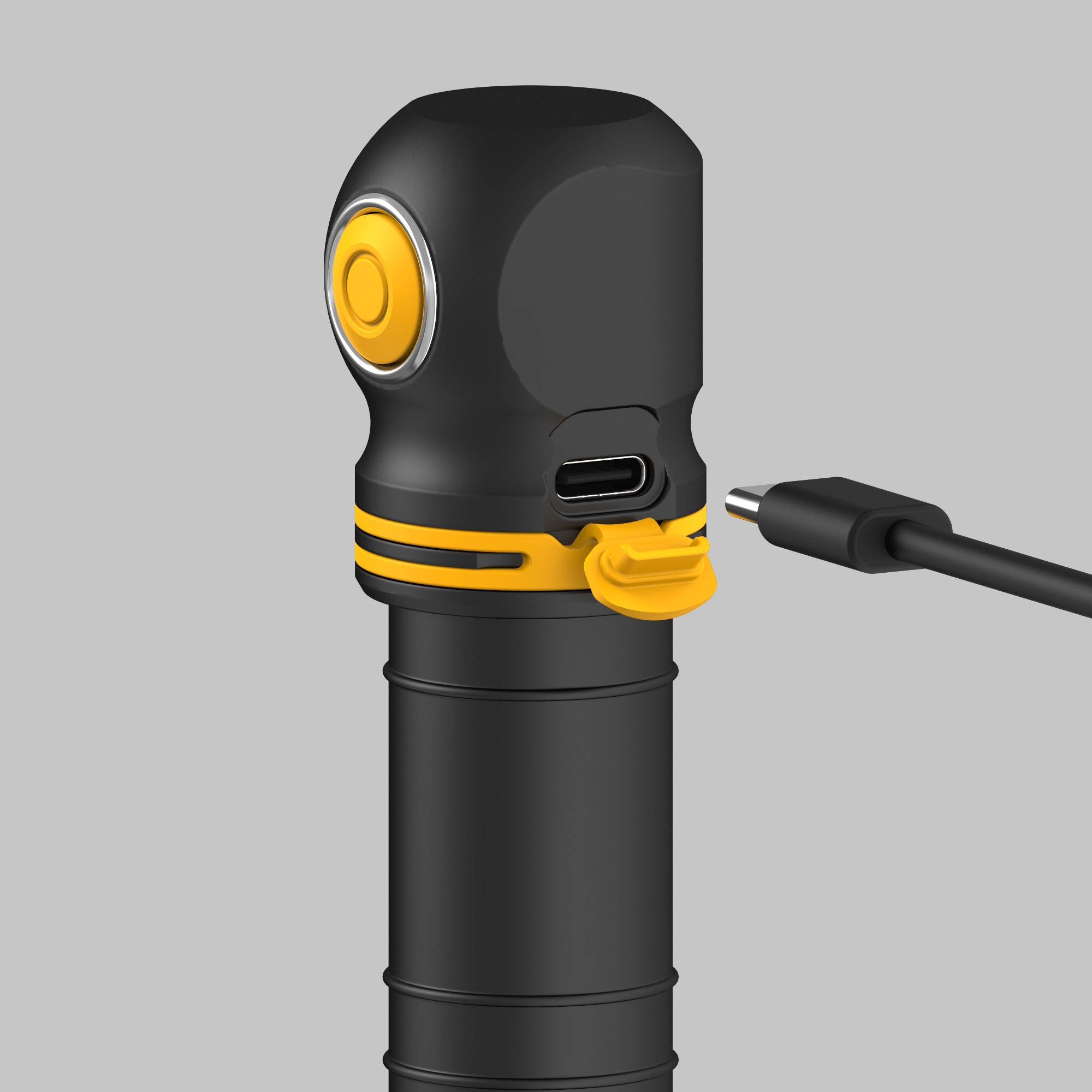

The flashlight is equipped with a high-capacity 21700 Li-Ion battery, which allows it to work for up to 27 hours on a single battery in medium brightness mode. The set also includes an adapter for using an 18650 Li-Ion battery. Thanks to the USB-C connector and intelligent charging algorithm, Elf C2 Max WR charges in just 2 hours and 35 minutes. If necessary, the model can be charged from a Powerbank or used in lamp mode.
ELF C2 MAX WR — MULTI FLASHLIGHT 4 IN 1
HEADLAMP
- Simple one-hand operation, reliable headmount
- Solid body without long wires, weak rubber connectors and unnecessary boxes
- The flashlight is easily installed, removed and 180° rotatable in the mount
- Quick-release silicone ring provides additional fixation
EVERY DAY CARRY LIGHT
- Compact design
- Convenient side button
- Special matt anti-abrasive finish without rough knurling
- Durable nylon holster, robust removable steel clip and strong built-in tail magnet
SPORTS FLASHLIGHT
- Body made from durable and lightweight aircraft-grade aluminium
- Improved shock resistance, new springs for better battery and driver protection
- Constant light without flickering
- Multiple variants of installation, optional accessories for mounting on sporting gear
LAMP MODE
- Works even without batteries directly from a Powerbank or a USB power supply
Advantages of the multi flashlight with additional red light
Red light is almost invisible to animals, fish and insects, comfortable for night vision.
Easy operation with one button and double click for switching between white and red light.
ELF C2 MAX WR next generation flashlight features

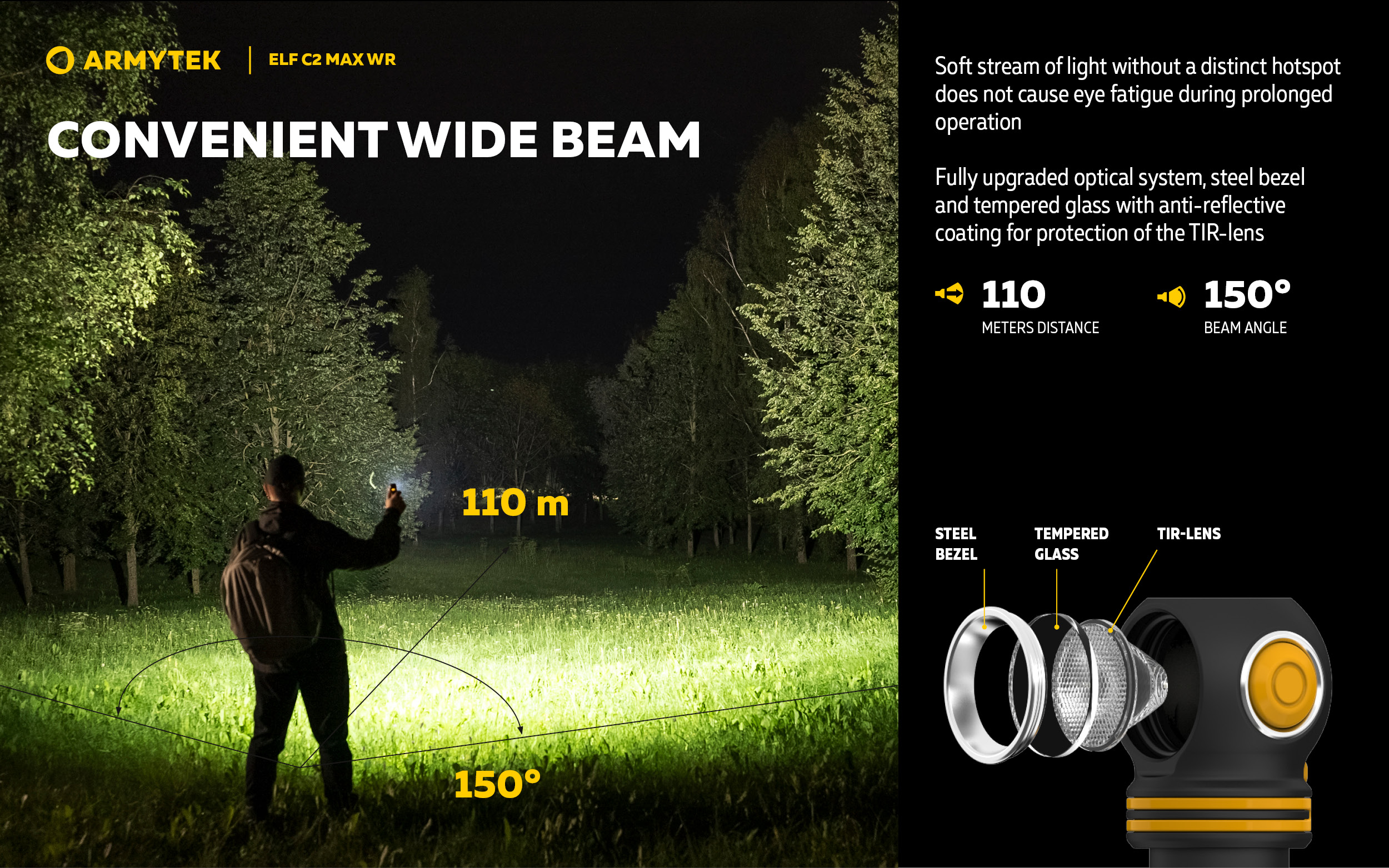

Specially designed optical system and TIR-lens: transmits more lumens, provides comfortable wide beam with 150° spill.
Innovated electronics: impressive light output for a model with two types of light.
Thought-out head design: new head design for better heat dissipation.
Large side button: soft and comfortable pressing.
Intelligent charging algorithm: safe current to extend battery life. The included 21700 Li-Ion 5000 mAh battery is charged in 2 h 35 min.
Optimally selected brightness modes: 7 modes of white light and 5 modes of red light for any task, including Strobe and Beacon.
Improved springs: new springs for better protection of the battery and driver and increased performance efficiency.
Steel bezel: additional protection of the optical system.
Ready-to-use solution: 21700 Li-Ion 5000 mAh battery, battery adapter for use of any 18650 Li-Ion battery and USB-C charging cable included.

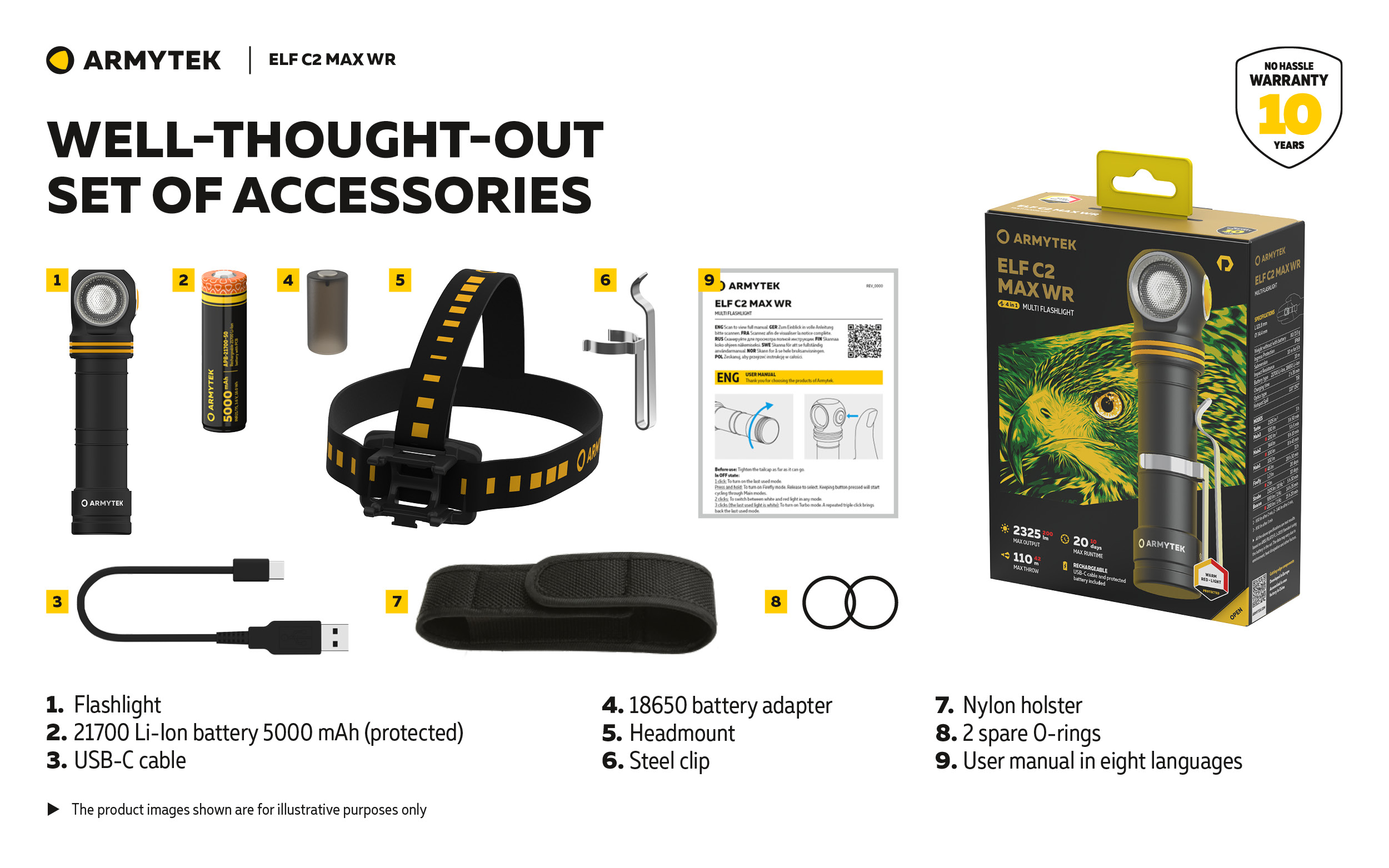

Well-thought-out set of accessories

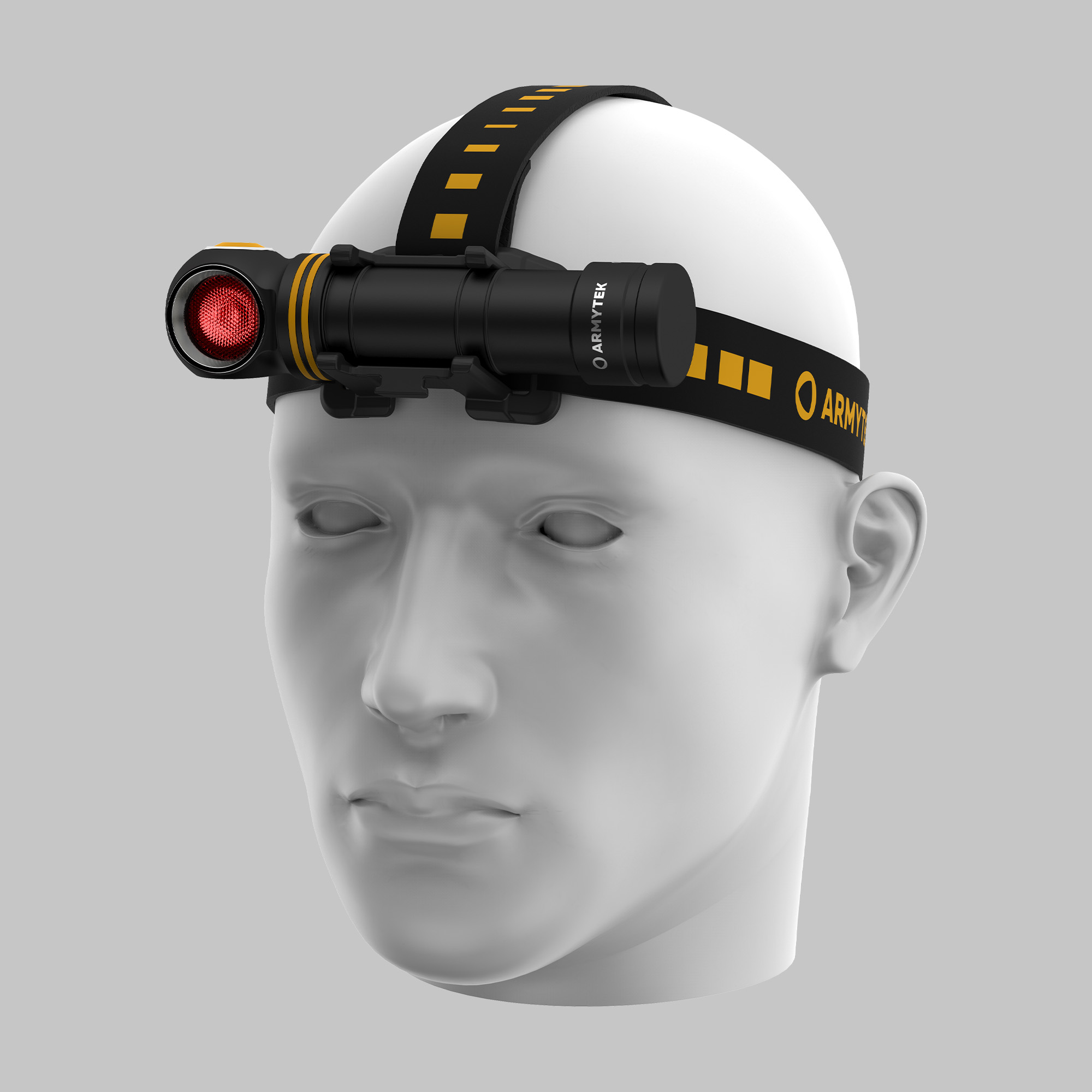

Headmount
Comfortable headmount with two soft elastic bands, lightweight holder made from composite material and rubber ring for additional fixation. The bands securely hold the flashlight, do not rub the skin and leave no marks. The flashlight is installed in one motion, the size of the mount is adjustable.

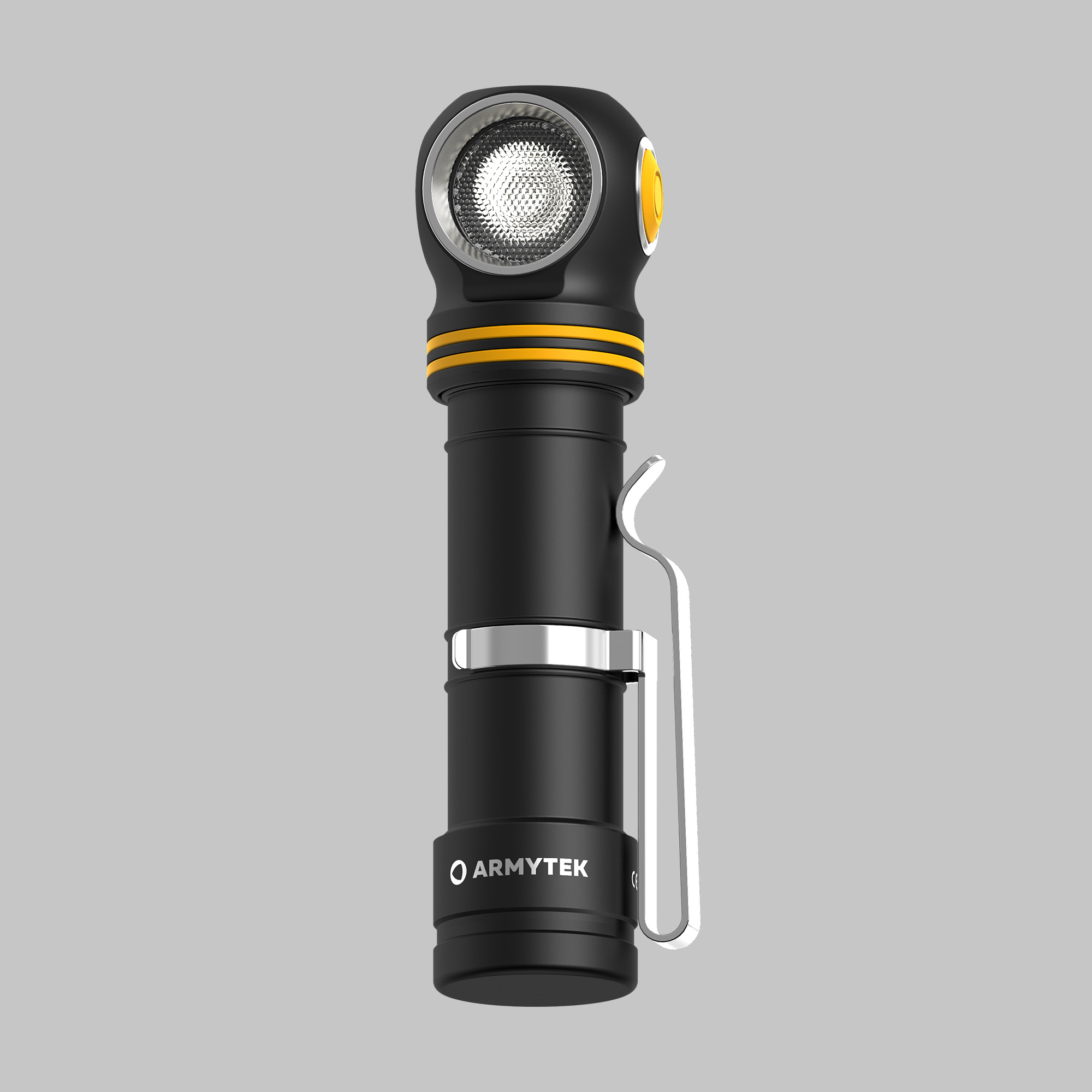

Clip
Removable stainless steel clip has two options for installation on the flashlight, provides a reliable mounting on clothing, belt or bag, as well as deep fit on the pocket.
Holster
Nylon holster with several fixing options: on a belt of any width, on equipment thanks to durable ring.
Magnet
Powerful built-in magnet in the tailcap is for attachment to any metal surface.
ADVANTAGES OF ELF SERIES FLASHLIGHTS
- Max New generation electronics provides 2500 lumens of white light, which is impressive for a model with two types of light. Constant brightness even at low ambient temperatures and not fully charged battery.
- Convenient wide beam of fully upgraded optical system, TIR-lens is protected from scratches by tempered glass with anti-reflective coating.
- Multicolor temperature, battery level and charging process indication.
- Innovative technology allows using any standard 21700 Li-Ion or 18650 Li-Ion battery.
- Intelligent algorithm for ultrafast charging.
- Active real-time temperature control to prevent overheating above +58 °C for safe and comfortable use.
- Thought-out head design for better heat dissipation and protection of the battery from overheating.
- Total protection from water, dirt and dust in accordance with IP68 standard — flashlight continues to work even after submersion at 10 meters depth. Withstands fallings from up to 10 meters.
- Robust and water resistant USB-C socket even without rubber cover.
- No hassle warranty 10 years.

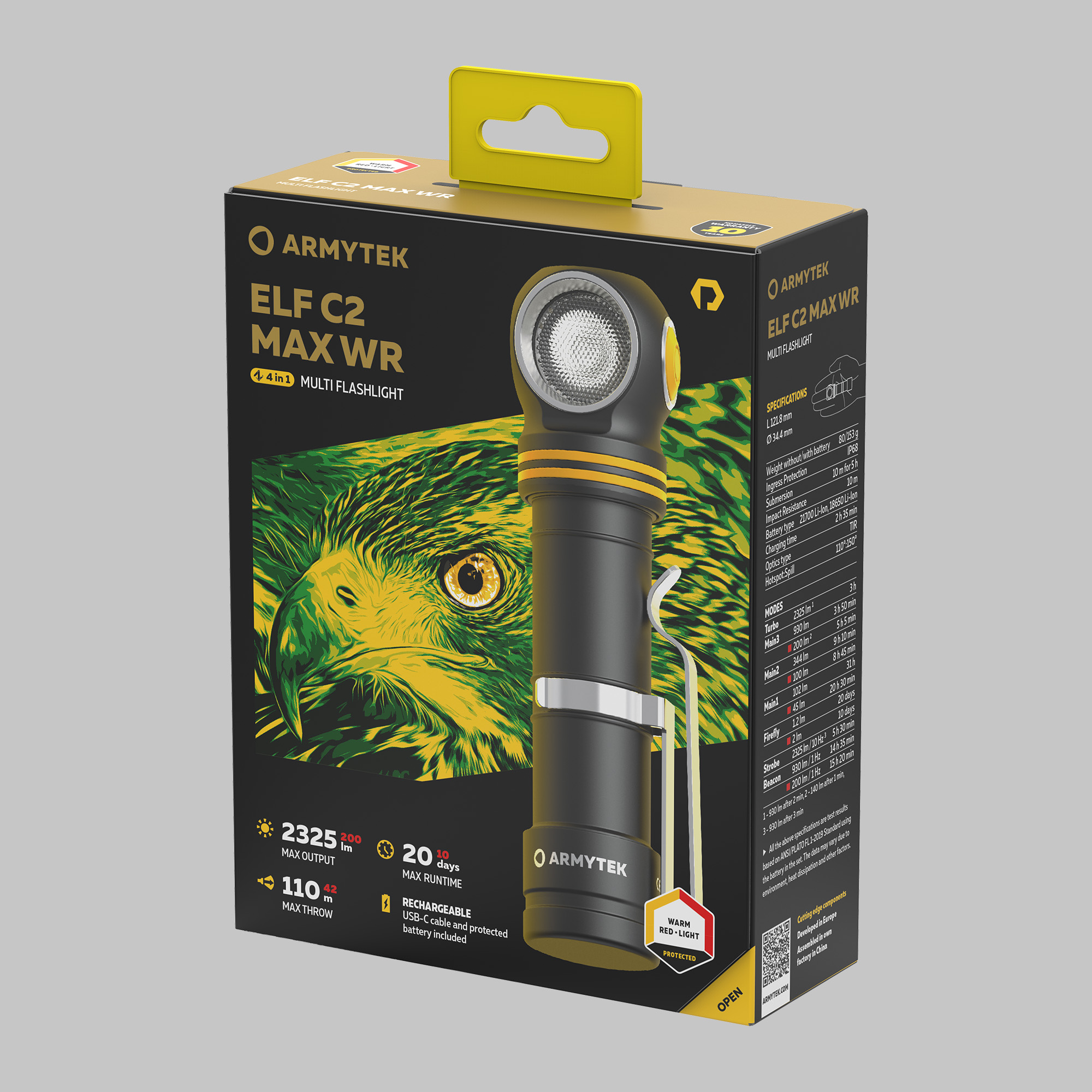

21700 Li-Ion battery (5000 mAh, protected) is included in the set.

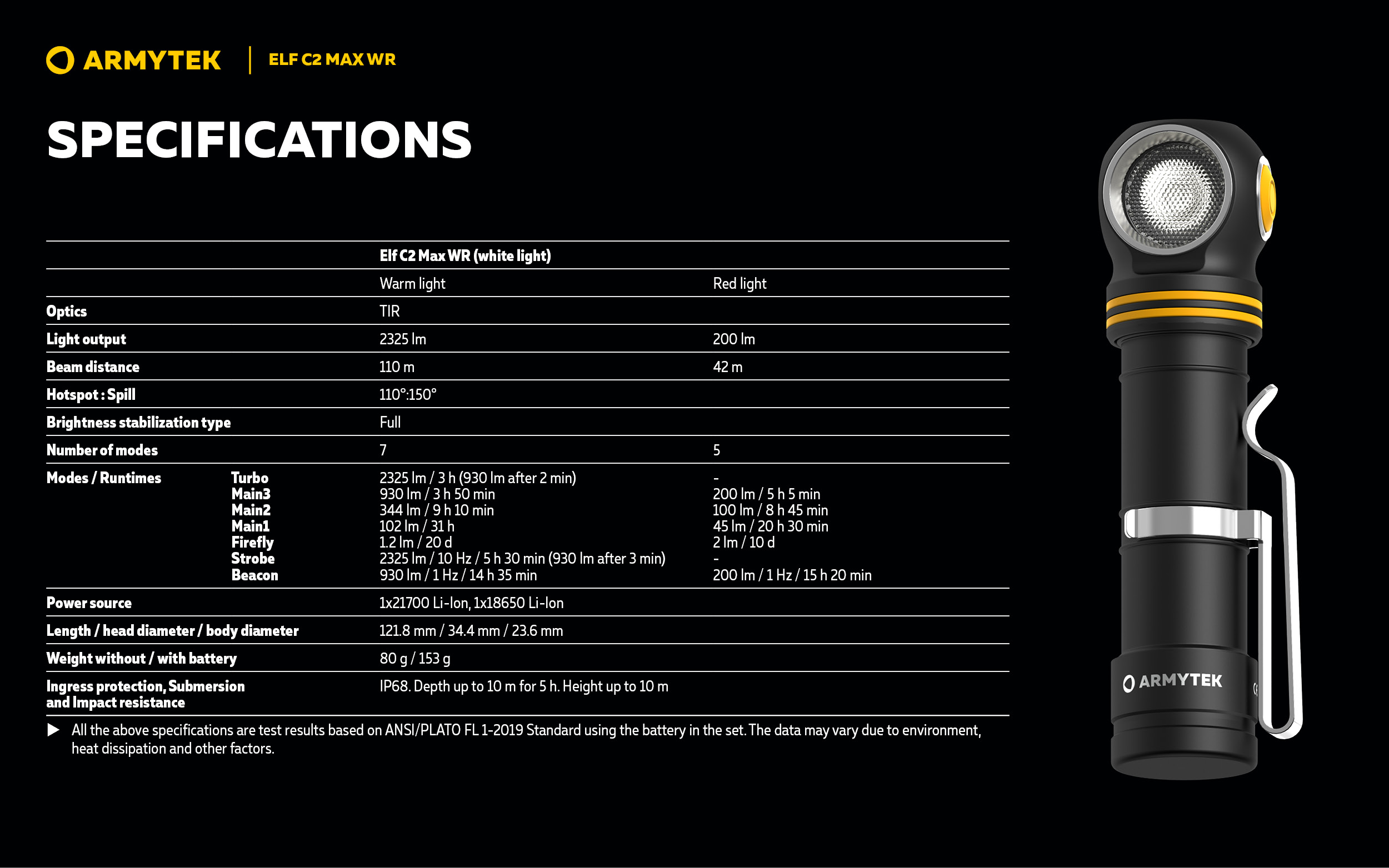

Elf C2 Max WR (warm light)
| Warm | Red | |
|---|---|---|
| Optics | TIR | |
| Light output | 2325 lm | 200 lm |
| Beam distance | 110 m | 42 m |
| Hotspot / Spill | 110°:150° | |
| Brightness stabilization | Full | |
| Number of modes | 7 | 5 |
| Modes / Runtimes |
2325 lm / 3 h (930 lm after 2 min) 930 lm / 3 h 50 min 344 lm / 9 h 10 min 102 lm / 31 h 1.2 lm / 20 d 2325 lm / 10 Hz / 5 h 30 min (930 lm after 3 min) 930 lm / 1 Hz / 14 h 35 min |
200 lm / 5 h 5 min 100 lm / 8 h 45 min 45 lm / 20 h 30 min 2 lm / 10 d 200 lm / 1 Hz / 15 h 20 min |
| Power source | 1x21700 Li-Ion, 1x18650 Li-Ion | |
| Length / head diameter / body diameter | 121.8 mm / 34.4 mm / 23.6 mm | |
| Weight without / with battery | 80 g / 153 g | |
| Ingress protection, Submersion and Impact resistance | IP68. Depth up to 10 m for 5 h. Height up to 10 m | |
Armytek Elf C2 Max WR — multi flashlight with red and white light and USB-C charger
A versatile model in the Elf series with powerful red and white outputs. Elf C2 Max WR is the perfect primary or additional light source in any situation. A wide beam of white light not only allows working at close range, but also effectively illuminates large spaces. Red light is optimal for maintaining night vision, especially when interchanging between turning the light on and off.
The flashlight is equipped with a high-capacity 21700 Li-Ion battery, which allows it to work for up to 27 hours on a single battery in medium brightness mode. The set also includes an adapter for using an 18650 Li-Ion. If necessary, the model can be charged from a Powerbank or used in lamp mode.
Review & Manual: Elf C2 Max WR
Video navigation:
0:05 Features of the models
1:13 Setting multicolor indication of the flashlight
1:45 Charging process
2:22 Operation
5:23 Lamp mode
