Armytek Elf C2 Max LR USB-C PCB White
Long-range version of the flagship product of the Elf series
Astonishing light output and impressive throw distance without compromise. Elf C2 Max LR is a long-range version of the Elf C2 Max multi flashlight flagship model.
The use of a specially designed reflector made it possible to obtain a long beam distance, while retaining a wide angle of light. Elf C2 Max LR is an excellent universal solution for any task: a beam with a large central spot and wide side spill is optimal both for use at close and medium distances and for highlighting individual remote objects.
The model works for up to 27 hours on a single battery in medium brightness mode. The set includes a high capacity 21700 Li-Ion 5000 mAh battery and an adapter for using an 18650 Li-Ion battery. Thanks to the USB-C connector and intelligent charging algorithm, Elf C2 Max LR charges in just 2 hours and 35 minutes. There is no need in carrying around a special charger: a standard USB-C cable from any manufacturer will do.
Elf C2 Max LR is great both in professional activities and in everyday use: for evening walks, fishing trips or hikes. Headmount, clip, holster, magnet in the tailcap and compatibility with optional accessories provide several fixing options. If necessary, the model can be charged from a Powerbank or used in lamp mode.
ELF C2 MAX LR — MULTI FLASHLIGHT 4 IN 1
HEADLAMP
- Simple one-hand operation, reliable headmount
- Solid body without long wires, weak rubber connectors and unnecessary boxes
- The flashlight is easily installed, removed and 180° rotatable in the mount
- Quick-release silicone ring provides additional fixation
EVERY DAY CARRY LIGHT
- Compact design
- Convenient side button
- Special matt anti-abrasive finish without rough knurling
- Durable nylon holster, robust removable steel clip and strong built-in tail magnet
SPORTS FLASHLIGHT
- Body made from durable and lightweight aircraft-grade aluminium
- Improved shock resistance, new springs for better battery and driver protection
- Constant light without flickering
- Multiple variants of installation, optional accessories for mounting on sporting gear

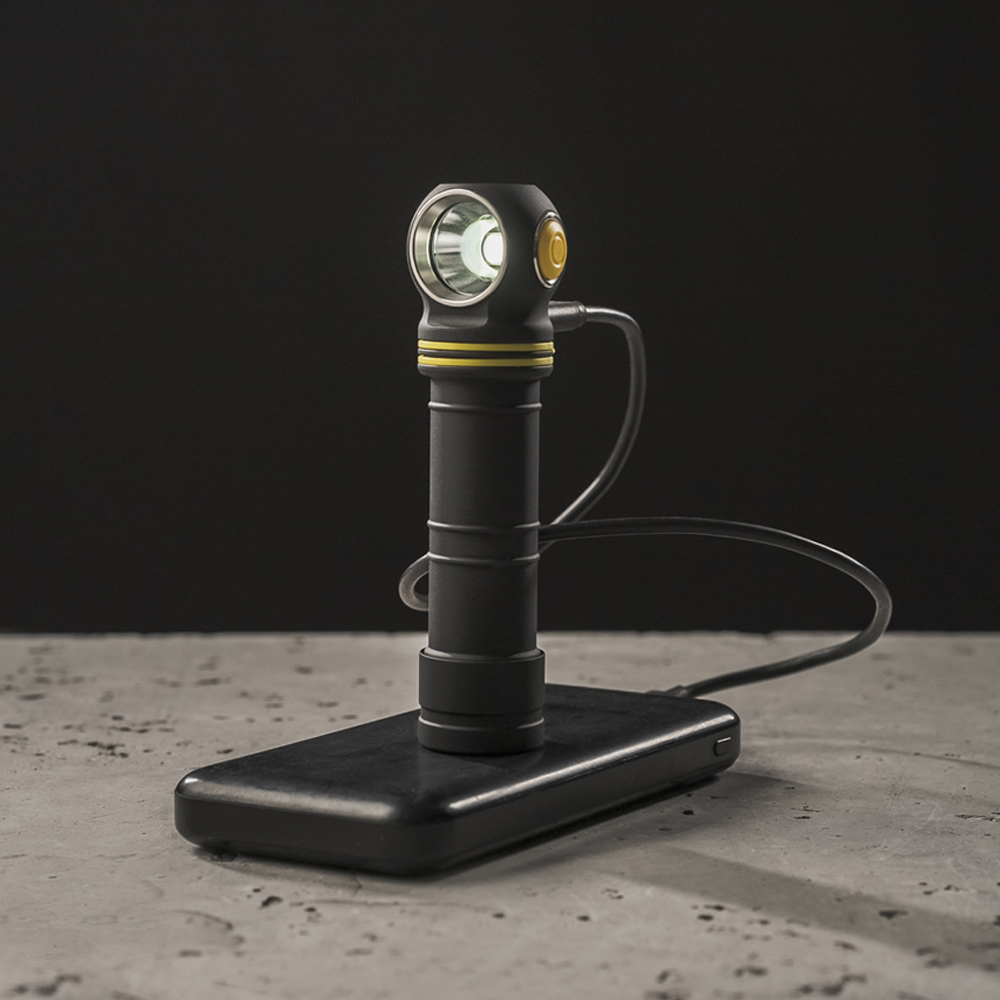

LAMP MODE
- Works even without batteries directly from a Powerbank or a USB power supply
ELF C2 MAX LR next generation flashlight features
Maximum light output: combination of wide LED and special reflector provides maximum brightness and throw distance.
Thought-out head design: new head design for better heat dissipation.
Large side button: soft and comfortable pressing.
Innovated electronics: combination of high brightness and prolonged runtimes.

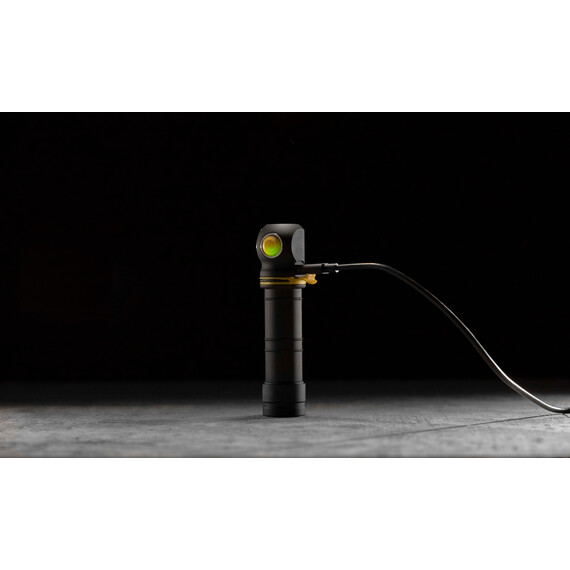

Intelligent charging algorithm: safe current to extend battery life. The included 21700 Li-Ion 5000 mAh battery is charged in 2 h 35 min.
Optimally selected brightness modes: 7 modes for any task, including Strobe and Beacon.
Improved springs: new springs for better protection of the battery and driver and increased performance efficiency.
Steel bezel: additional protection of the optical system.

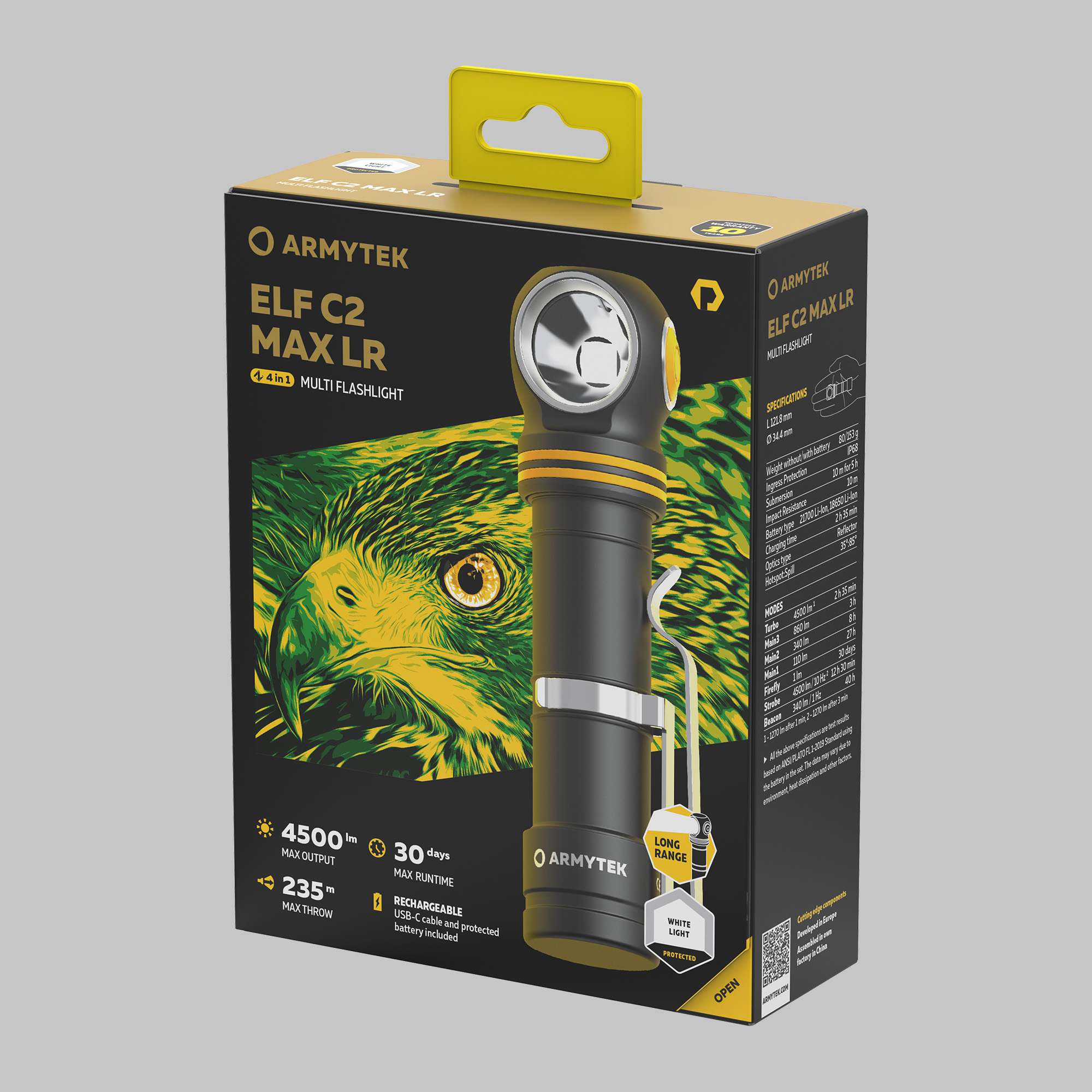

Ready-to-use solution: 21700 Li-Ion 5000 mAh battery, battery adapter for use of any 18650 Li-Ion battery and USB-C charging cable included.
Compatibility with magnetic remote switch: optional magnetic remote switch for momentary on (only when the button is pressed) and for constant light. Easy one-motion connection, no need to unscrew the tailcap.
Well-thought-out set of accessories

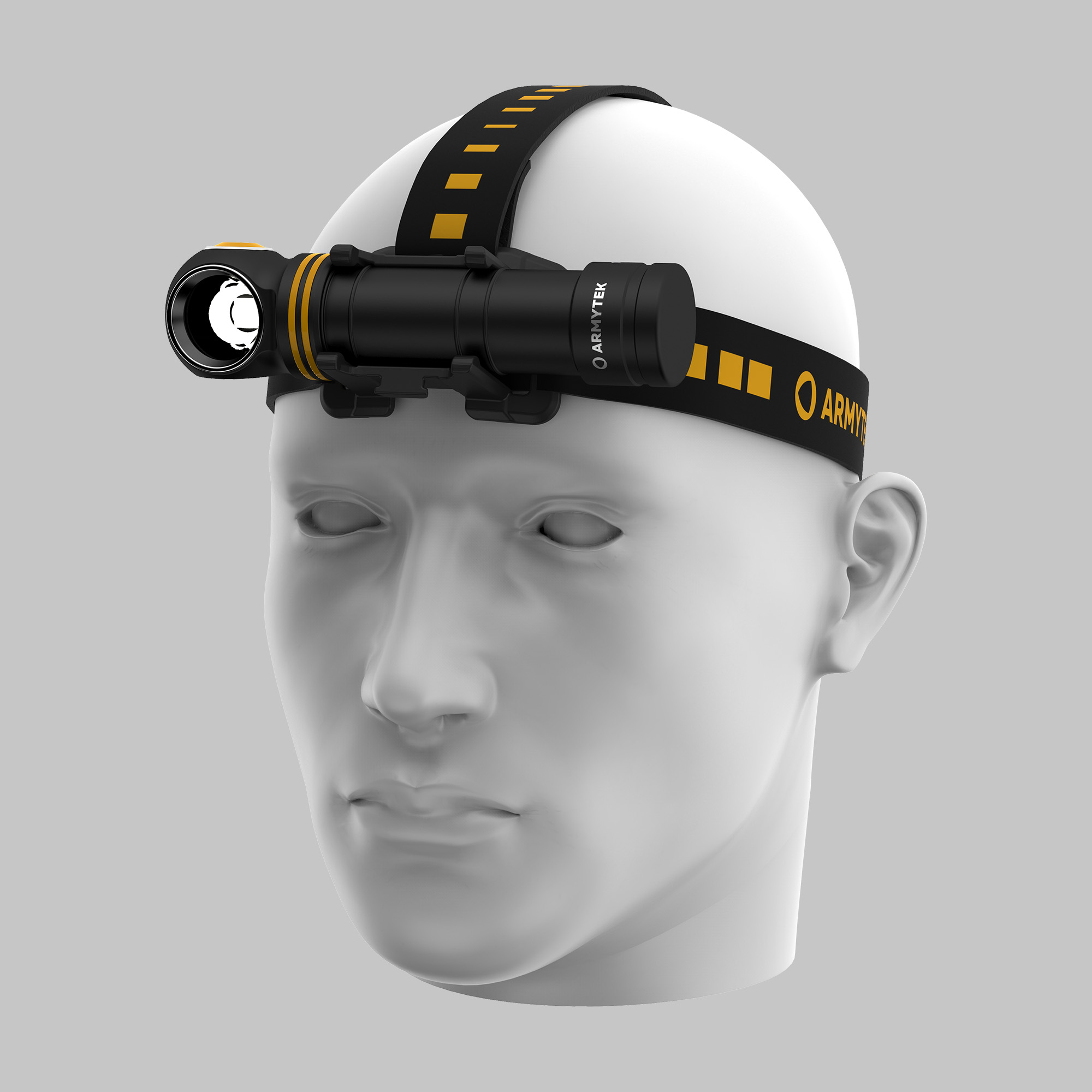

Headmount
Comfortable headmount with two soft elastic bands, lightweight holder made from composite material and rubber ring for additional fixation. The bands securely hold the flashlight, do not rub the skin and leave no marks. The flashlight is installed in one motion, the size of the mount is adjustable.

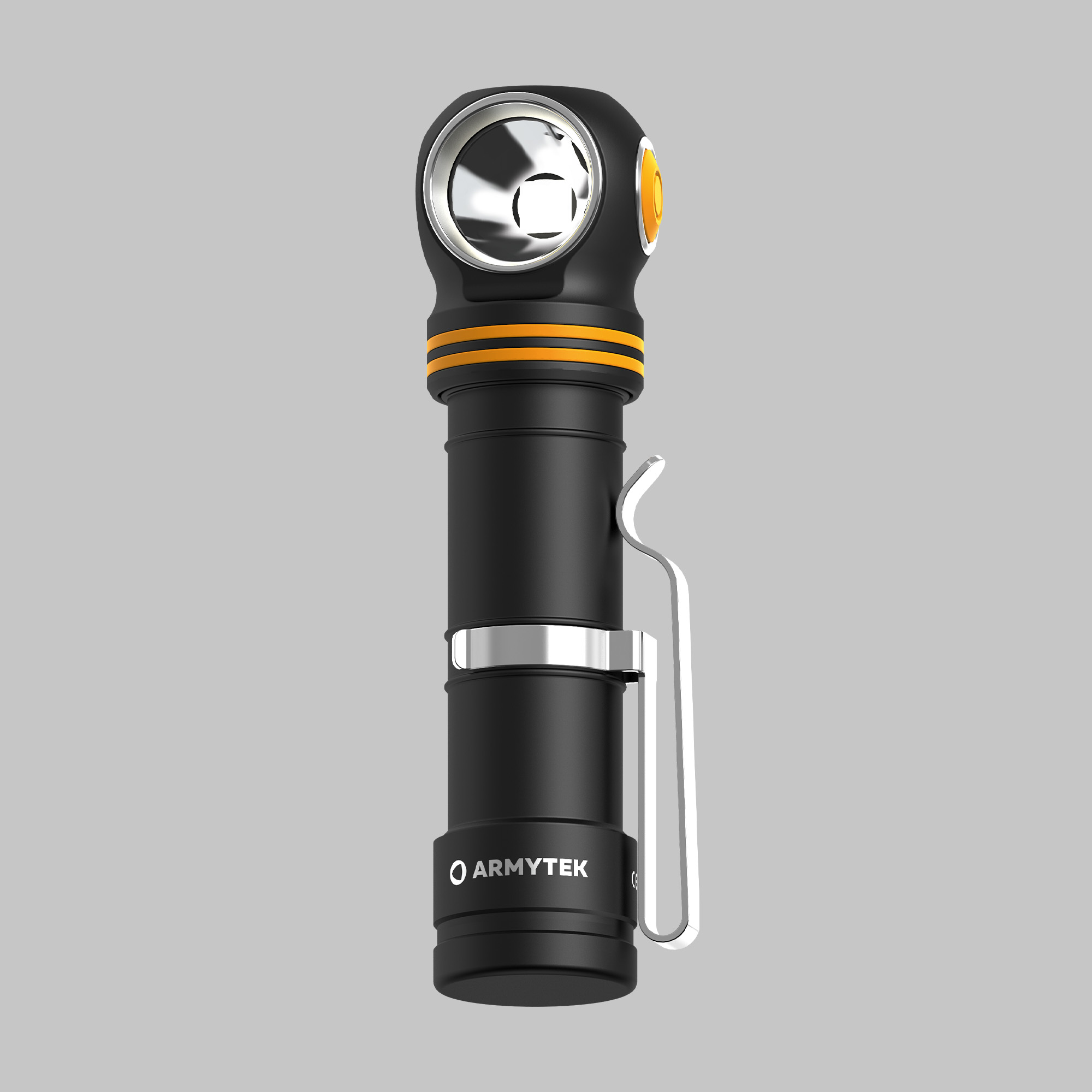

Clip
Removable stainless steel clip has two options for installation on the flashlight, provides a reliable mounting on clothing, belt or bag, as well as deep fit on the pocket.
Holster
Nylon holster with several fixing options: on a belt of any width, on equipment thanks to durable ring.
Magnet
Powerful built-in magnet in the tailcap is for attachment to any metal surface.
ADVANTAGES OF ELF SERIES FLASHLIGHTS
- Max New generation electronics provides impressive light output of 4500 lumens. Constant brightness even at low ambient temperatures and not fully charged battery.

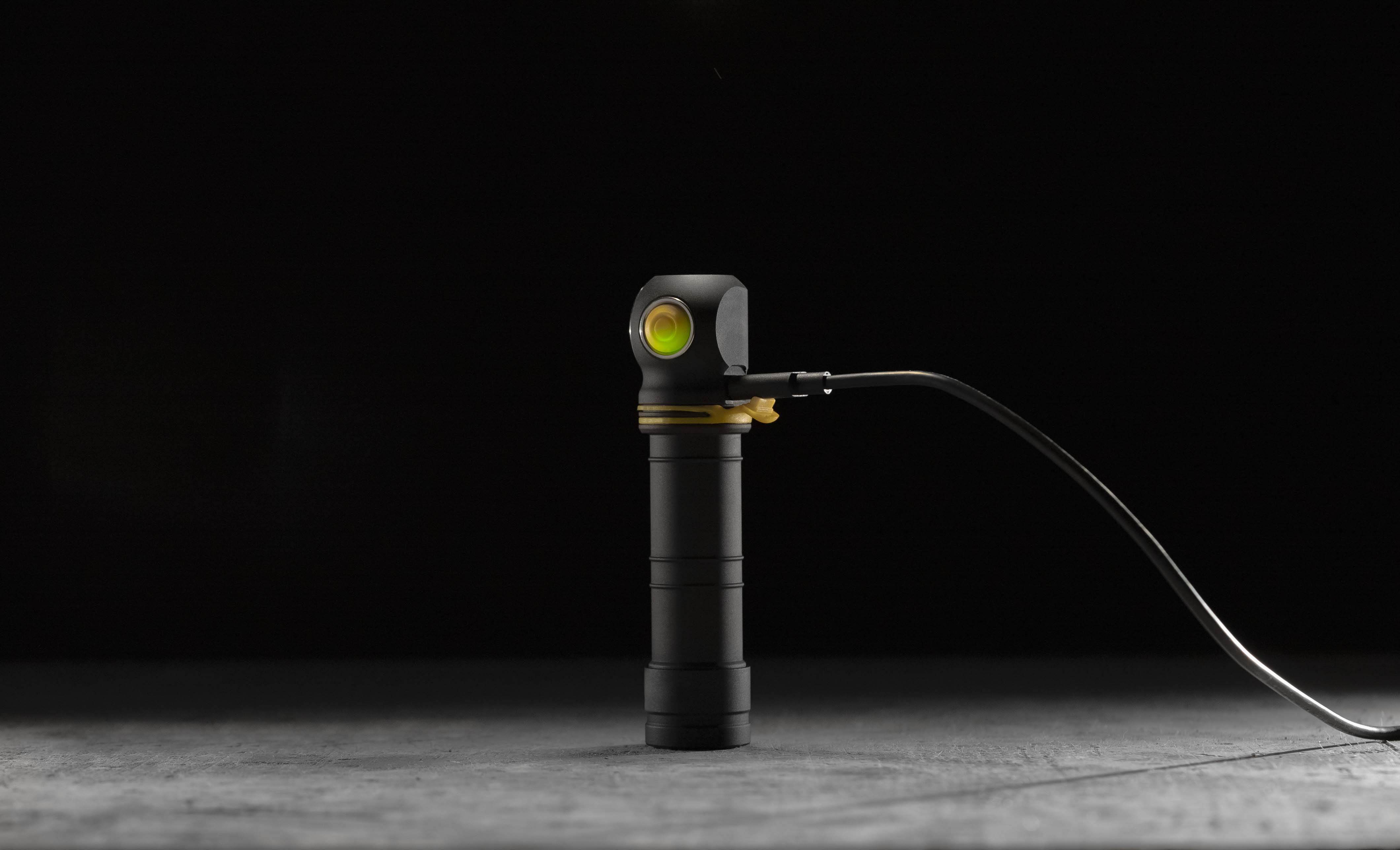

- Multicolor temperature, battery level, charging process and state indication.
- Special precisely calculated reflector for powerful wide LED and tempered glass with anti-reflective coating create large central spot and wide side spill at impressive brightness and throw distance.
- Innovative technology allows using any standard 21700 Li-Ion or 18650 Li-Ion battery.
- Intelligent algorithm for ultrafast charging.
- Active real-time temperature control to prevent overheating above +58 °C for safe and comfortable use.
- Thought-out head design for better heat dissipation and protection of the battery from overheating.
- Total protection from water, dirt and dust in accordance with IP68 standard — flashlight continues to work even after submersion at 10 meters depth. Withstands fallings from up to 10 meters.

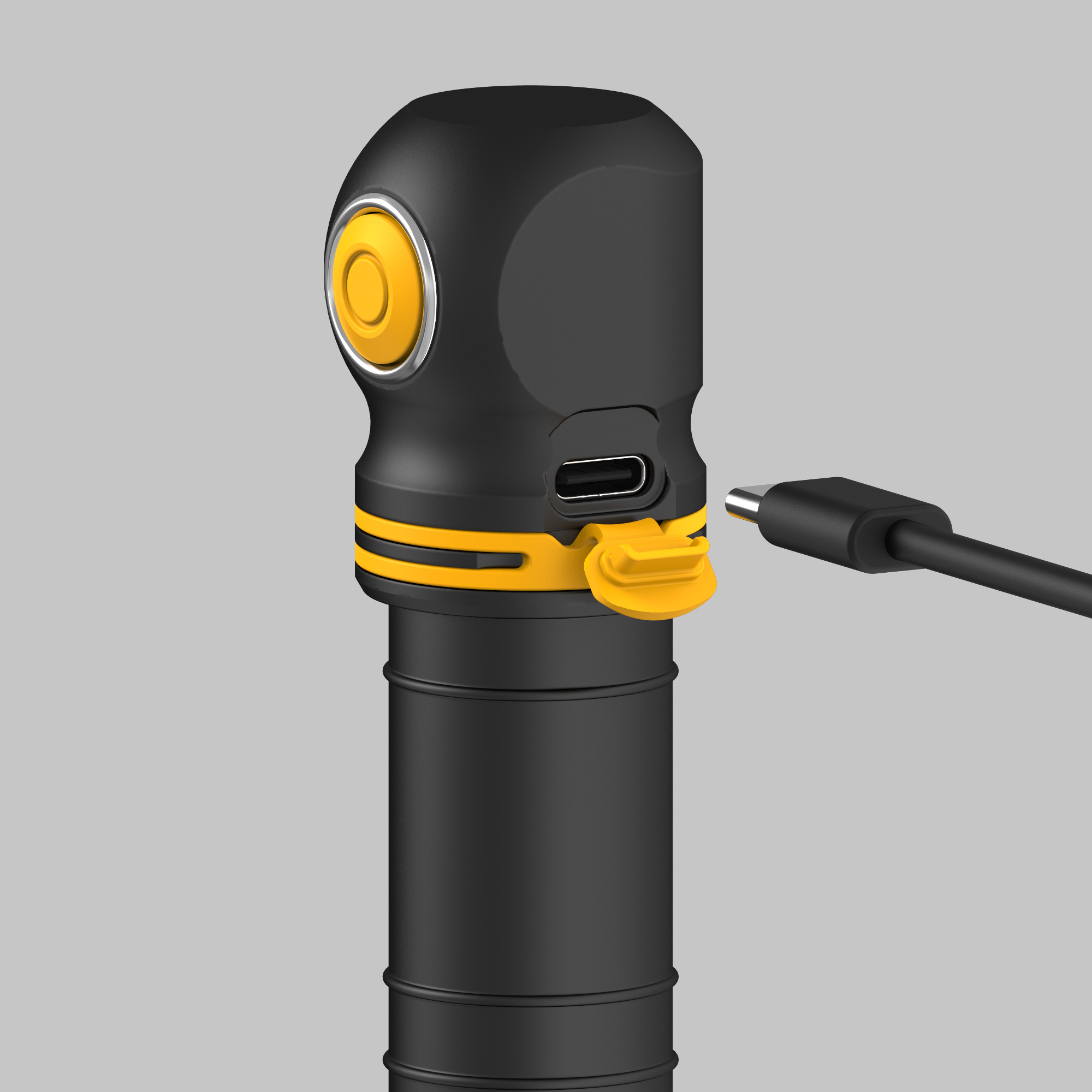

- Robust and water resistant USB-C socket even without rubber cover.
- No hassle warranty 10 years.
21700 Li-Ion battery (5000 mAh, protected) is included in the set.
Elf C2 Max LR (white light)
| White | ||
|---|---|---|
| Optics | Reflector | |
| Light output | 4500 lm | |
| Beam distance | 235 m | |
| Hotspot / Spill | 35°:85° | |
| Brightness stabilization | Full | |
| Number of modes | 7 | |
| Modes / Runtimes |
4500 lm / 2 h 35 min (1270 lm after 1 min) 860 lm / 3 h 340 lm / 8 h 110 lm / 27 h 1 lm / 30 d 4500 lm / 10 Hz / 12 h 30 min (1270 lm after 3 min) 340 lm / 1 Hz / 40 h |
|
| Power source | 1x21700 Li-Ion, 1x18650 Li-Ion | |
| Length / head diameter / body diameter | 121.8 mm / 34.4 mm / 23.6 mm | |
| Weight without / with battery | 80 g / 153 g | |
| Ingress protection, Submersion and Impact resistance | IP68. Depth up to 10 m for 5 h. Height up to 10 m | |
Armytek Elf C2 Max LR — long-range version of the flagship product of the series with USB-C charger
Astonishing light output and impressive throw distance without compromise. Elf C2 Max LR is a long-range version of the Elf C2 Max multi flashlight flagship model. The use of a specially designed reflector made it possible to obtain a long beam distance, while retaining a wide angle of light. Elf C2 Max LR is an excellent universal solution for any task: a beam with a large central spot and wide side spill is optimal both for use at close and medium distances and for highlighting individual remote objects.
The model works for up to 27 hours on a single battery in medium brightness mode. The set includes a high capacity 21700 Li-Ion 5000 mAh battery and an adapter for an 18650 Li-Ion. Elf C2 Max LR can also be used in lamp mode even without a battery inside: just connect the flashlight to a Powerbank or other power supply.
Review & Manual: Elf C2 Max, Elf C2 Max LR
Video navigation:
0:05 Features of the models
1:12 Setting multicolor indication of the flashlight
1:45 Charging process
2:22 Operation
4:30 Lamp mode
